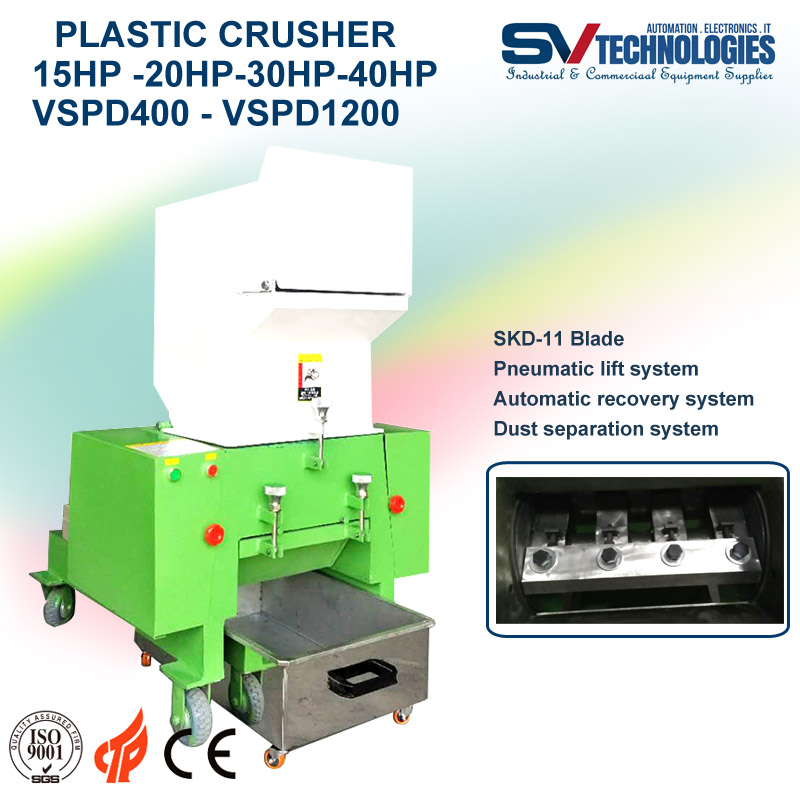

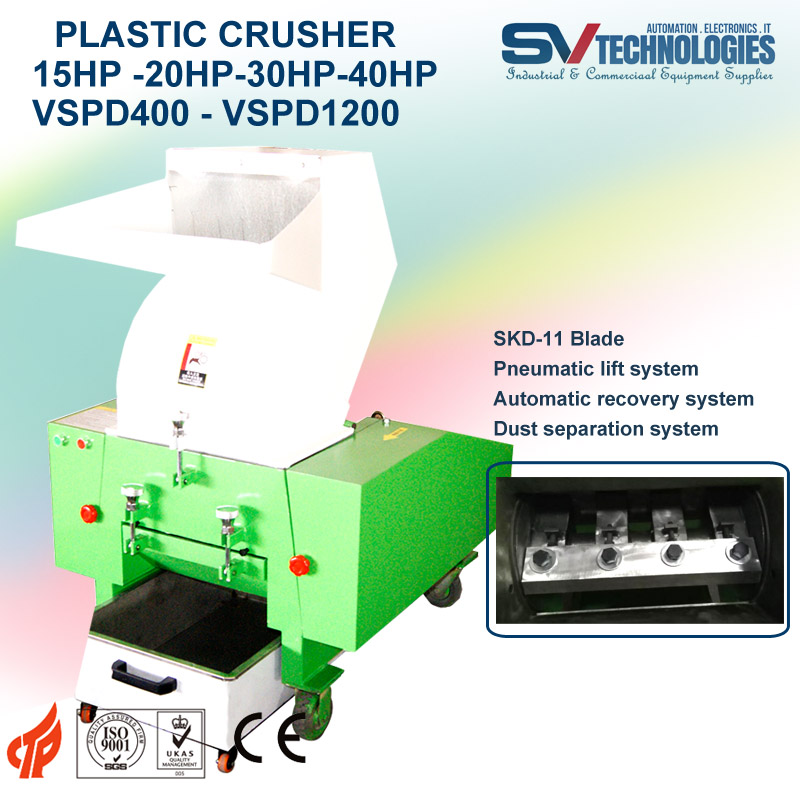

Plastic Crusher_PD Flate Blade Series

Motor Power : 10~120 HP
Number of Blades : 14~31 PCS
Crushing Chamber : 410~1200 mm
Crushing Capacity : 100~1500 Kg/h

Features:
1. the machine adopts a high hardness steel template, so it very solid and durable.
2. shaft made of special material processing, not easy deformed.
3. Feeding hopper, cutter, and filter can be separated with easy opening and cleaning.

This PD type crusher/crushing/grinder/shredder/cutter machine used for crushing all kinds of hard plastic, such as plastic bottles, containers, pellets plastic, sheets, packing strap, plastic buckets, plastic desk, the plastic table ends from injection molding machines and extruder, etc.

Suitable Material Of Plastic Crusher Machine

1. PET bottle, drink bottle label, bottle cap.
2. PE film, agricultural film, bag, PE pipe, water pipe, drainage pipe.
3. PP woven bag, PP water drum, PP cup, PP film, sheet, pallet, basket.
4. LDPE/HDPE film, sheet, flake, lump, board.
5. PVC pipe, profile, window frame, door frame, soft PVC door curtain.
6. Wood plastic window/door.
7. PC/ABS water drum, LOCK crisper.
8. Rubber tire, rubber/plastic material from the injection mold.
9. Fiber, coconut fiber, jute fiber.
10. Non-woven fabric and Nylon.
11. Leather, artificial leather, leather shoes, leather clothes, leather hand bags.

Model		SV-PD400	SV-PD500	SV-PD500	SV-PD600	SV-PD700	SV-PD800
Voltage		380V 50Hz 3Phase
Crushing chamber		410×235 mm	515×290 mm	515×470 mm	615×320 mm	715×320	815×470 mm
Crushing ability		100-300 kg/h	200-300 kg/h	200-300 kg/h	300-350 kg/h	350-400 kg/h	400-450 kg/h
Motor Power		7.5 kw	15HP	30HP	20HP	20HP/30HP	30HP/40HP
Blade Material		SKD-11
Stationary cutter		2	2	2	2	2	4
Rotary cutter		3	6	6	6	6	6
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480	480	480	480	480	480
Screen mesh	mm	10	10	10	10	10	10
Size	L/mm	1350	1435	1435	1580	1610	1750
	W/mm	850	1100	1100	1100	1210	1540
	H/mm	1350	1550	1550	1650	1740	2340
Weight	KG	515	900	900	1050	1400	2000
Protection	Design of easy to remove and clean blades
Protection	Equipped with motor overhaul and electric chain protection system to ensure safe use

Plastic Crusher_PP Slice Blade Series

Brand Name:HYNAAR
Model : PP400 PP500 PP600 PP700 PP800 PP960
Use:Plastic Pipe Crusher
Plastic Type:ABS/PP/PE/PVC/PET
Shaft Design:Single
Voltage:380V-50Hz/Customized
Certification:CE ISO SGS
Warranty:1 year
After-sales Service :Video technical support, Online support, Engineers available for service
Applicable Industries:Manufacturing Plant, Machinery Repair Shops
Application:Plastic Products
Usage:Waste Plastic Cusher
Blades material:9CrSi/D2/SKD-11

Features:
Slice blade recycling waste plastic crusher/pet bottle granulator
1. Slice/Piece cutter blade is suitable for recycle and restore of conventional sheets, tube plastics, profiles, packing plastics, extrusion mold products, and runners;
2. General operation adopted with an airtight sealed bearing to allow long hours rotation; well-designed cutter blades, to ensure the balance of pellets sizes after crushed; cutter base with special heat treatments, elegant in appearance.

Suitable Material Of Plastic Crusher Machine


Model		SV - PP400
Voltage		380V 50Hz 3Phase
Crushing chamber		410×235 mm
Crushing ability		100-200 kg/h
Motor Power		10HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		12
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1200
	W/mm	850
	H/mm	1340
Weight	KG	500


Model		SV - PP500
Voltage		380V 50Hz 3Phase
Crushing chamber		515×290 mm
Crushing ability		200 kg/h
Motor Power		15HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		15
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1435
	W/mm	1100
	H/mm	1550
Weight	KG	900


Model		SV - PP600
Voltage		380V 50Hz 3Phase
Crushing chamber		615×320 mm
Crushing ability		200-350 kg/h
Motor Power		20HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		18
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1580
	W/mm	1100
	H/mm	1650
Weight	KG	1100


Model		SV - PP700
Voltage		380V 50Hz 3Phase
Crushing chamber		715×320 mm
Crushing ability		300-450 kg/h
Motor Power		20HP/30HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		21
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1610
	W/mm	1210
	H/mm	1740
Weight	KG	1100


Model		SV - PP800
Voltage		380V 50Hz 3Phase
Crushing chamber		815×470mm
Crushing ability		400-500kg/h
Motor Power		30HP/40HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		24
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1800
	W/mm	2000
	H/mm	2340
Weight	KG	2000


Model		SV - PP1000
Voltage		380V 50Hz 3Phase
Crushing chamber		1000×600 mm
Crushing ability		500-700 kg/h
Motor Power		50/60 HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		33
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	2000
	W/mm	2200
	H/mm	2340
Weight	KG	2500

Plastic Cusher_PZ Claw Blade Series

Brand Name:HYNAAR
Model : PZ500 PZ600 PZ700 PZ800
Use:Plastic Pipe Crusher
Plastic Type:ABS/PP/PE/PVC/PET
Shaft Design:Single
Voltage:380V-50Hz/Customized
Certification:CE ISO SGS
Warranty:1 year
After-sales Service :Video technical support, Online support, Engineers available for service
Applicable Industries:Manufacturing Plant, Machinery Repair Shops
Application:Plastic Products
Usage:Waste Plastic Cusher
Blades material:9CrSi/D2/SKD-11

Claw Type Crusher:
1. The granulators are adopted with the pre-positioning blades design that can increase the cutting angle and improve the cutting efficiency
2. The claw blades are especially efficient for larger and harder materials.
3. Double-casted with 4 sides hopper. The inner layer is made of stainless steel and the out layer is cast by thicker iron. It can deduce the noise under operation.
4. It is adopted with the safety devices meeting the European safety standard.
5. The shaft is made of high-level steel.
6.Heavy-duty bearings, large inertial wheel, and strong crushing ability.
7.Easy-disassembly design, simple and easy to clean and maintain.
8.Two-layer sound-insulated hopper to insulate noise
9.High-speed quality cutter, sharp edge, durable in operation.
10. Interlock power protection to ensure operational safety.

Suitable Material Of Plastic Crusher Machine

Model		SV - PZ500
Voltage		380V 50Hz 3Phase
Crushing chamber		515×320 mm
Crushing ability		200-300 kg/h
Motor Power		15/20 HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		15
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1430
	W/mm	1100
	H/mm	1550
Weight	KG	900


Model		SV - PZ600
Voltage		380V 50Hz 3Phase
Crushing ability		300-400 kg/h
Motor Power		20HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		18
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1580
	W/mm	1100
	H/mm	1650
Weight	KG	1180

Model		SV - PZ700
Voltage		380V 50Hz 3Phase
Crushing chamber		700×320 mm
Crushing ability		400-500 kg/h
Motor Power		30HP/40HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		21
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1610
	W/mm	1210
	H/mm	1740
Weight	KG	1800

Model		SV - PZ800
Voltage		380V 50Hz 3Phase
Crushing chamber		815×470 mm
Crushing ability		500-700 kg/h
Motor Power		30HP/40HP/50HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		24
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1800
	W/mm	2000
	H/mm	2340
Weight	KG	3000

Plastic Cusher_PV "V" Blade Series

Brand Name:HYNAAR
Model : PV500 PV600 PV700 PV800 PV1000 PV1200 PV1500
Use:Plastic Pipe Crusher
Plastic Type:ABS/PP/PE/PVC/PET
Shaft Design:Single
Voltage:380V-50Hz/Customized
Certification:CE ISO SGS
Warranty:1 year
After-sales Service :Video technical support, Online support, Engineers available for service
Applicable Industries:Manufacturing Plant, Machinery Repair Shops
Application:Plastic Products
Usage:Waste Plastic Cusher
Blades material:9CrSi/D2/SKD-11

V type of Blade Crusher
PV series of film crushers is a grinding machine specially designed for crushing soft, semi-rigid or rigid films such as PE, PP, PET, PVC and highly sensitive materials such as boxes, bags, packing tapes. This specific design improves the efficiency and quality of the film crushing, making it the ideal machine to crush films.
1) No axis rotation with a large cutting space and low heat dissipation.
2) Suitable for crushing and recycling PE.PP and other plastic film materials.
3) The tool is made of quality materials which makes it fast in speed with a long lifetime.
4) Large flywheels to increase the torque and capacity as a result.
5) The unique design of the scissors-type cutter frame improves efficiency.
6) Motor designed with overload protection, which automatically shuts down when it enters protection mode.
7) Interlock safety device designed to protect the machine operator
8) Equipped with a recycling system using a suction fan and storage tank to fully improve the efficiency of recycling.

Suitable Material Of Plastic Crusher Machine

1. Crushing all kinds of film, plastic bags and other plastic products
2. PE film, agricultural film, bag, PE pipe, water pipe, drainage pipe.
3. LDPE/HDPE film

Model		SV - PV500
Voltage		380V 50Hz 3Phase
Crushing chamber		515×290 mm
Crushing ability		100-150 kg/h
Motor Power		15HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		6
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	1435
	W/mm	1100
	H/mm	1550
Weight	KG	900

Model		SV - PV600
Voltage		380V 50Hz 3Phase
Crushing chamber		615×320 mm
Crushing ability		200 kg/h
Motor Power		20HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		6
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	1580
	W/mm	1100
	H/mm	1650
Weight	KG	1050

Model		SV - PV700
Voltage		380V 50Hz 3Phase
Crushing chamber		715×320
Crushing ability		230-280 kg/h
Motor Power		20HP/30HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		6
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	1610
	W/mm	1210
	H/mm	1740
Weight	KG	1400

Model		SV - PV800
Voltage		380V 50Hz 3Phase
Crushing chamber		815×470 mm
Crushing ability		280-350 kg/h
Motor Power		30HP/40HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		6
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	1750
	W/mm	1540
	H/mm	2340
Weight	KG	2000

Model		SV - PV1000
Voltage		380V 50Hz 3Phase
Crushing chamber		1000×600 mm
Crushing ability		400-450 kg/h
Motor Power		50HP/60HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		9
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	2000
	W/mm	2200
	H/mm	2340
Weight	KG	2500

Model		SV - PV1200
Voltage		380V 50Hz 3Phase
Crushing chamber		1200×600 mm
Crushing ability		400-500 kg/h
Motor Power		60HP/75HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		10
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	80
Size	L/mm	2050
	W/mm	2250
	H/mm	3010
Weight	KG	5000

Model		SV - PV1500
Voltage		380V 50Hz 3Phase
Crushing chamber		1500×700 mm
Crushing ability		800-1000 kg/h
Motor Power		100HP
Blade Material		SKD-11
Stationary cutter		According design
Rotary cutter		According design
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	2050
	W/mm	2250
	H/mm	3010
Weight	KG	5000

Plastic Cusher_Sound Proof JY Series

Brand Name:HYNAAR
Model : JY400 JY500 JY600 JY800 PV1000
Use:Plastic Pipe Crusher
Plastic Type:ABS/PP/PE/PVC/PET
Shaft Design:Single
Voltage:380V-50Hz/Customized
Certification:CE ISO SGS
Warranty:1 year
After-sales Service :Video technical support, Online support, Engineers available for service
Applicable Industries:Manufacturing Plant, Machinery Repair Shops
Application:Plastic Products
Usage:Waste Plastic Cusher
Blades material:9CrSi/D2/SKD-11

Sound Proof Crusher :
Soundproof type crusher is able to work with all kinds of plastic material, to reduce the noise and keep the material pure to prevent pollution.
1. Suitable for recycling of the plastic casing, thin tube plastics, injection and mold sector, bottle plastics and shell plastics;
2. PP/PD/PZ/PV/JY series are easy to operate and simple to replace cutters. The spacious flat blade is suitable to granulate bulky and thin plastics, increases efficiency; installed with electrical safety devices; double wall hopper with sound-proof material. The motor is equipped with an overload protector, and power protection devices. Safety and environmental protection, low electricity consumption and durable. Stainless steel hopper for all models is available.
Features:
1. Heavy-duty bearings, large inertial wheel, and strong crushing ability.
2. Easy-disassembly design, simple and easy to clean and maintain.
3. Two-layer sound-insulated hopper to insulate noise.
4. High-speed quality cutter, sharp edge, durable in operation.
5. Interlock power protection to ensure operational safety.
Suitable Material Of Plastic Crusher Machine
1. PET bottle, drink bottle label, bottle cap.
2. PE film, agricultural film, bag, PE pipe, water pipe, drainage pipe.
3. PP woven bag, PP water drum, PP cup, PP film, sheet, pallet, basket.
4. LDPE/HDPE film, sheet, flake, lump, board.
5. PVC pipe, profile, window frame, door frame, soft PVC door curtain.
6. Wood plastic window/door.
7. PC/ABS water drum, LOCK crisper.
8. Rubber tire, rubber/plastic material from the injection mold.
9. Fiber, coconut fiber, jute fiber.
10. Non-woven fabric and Nylon.
11. Leather, artificial leather, leather shoes, leather clothes, leather hand bags.

Model		SV - JY400
Voltage		380V 50Hz 3Phase
Crushing chamber		410×250 mm
Crushing ability		200-250 kg/h
Motor Power		7.5 kw
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		12
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1200
	W/mm	850
	H/mm	1290
Weight	KG	800

Model		SV - JY500
Voltage		380V 50Hz 3Phase
Crushing chamber		515×290 mm
Crushing ability		300-350 kg/h
Motor Power		15HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		15
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1435
	W/mm	1100
	H/mm	1550
Weight	KG	1000

Model		SV - JY600
Voltage		380V 50Hz 3Phase
Crushing chamber		610×320 mm
Crushing ability		400-450 kg/h
Motor Power		20HP
Blade Material		SKD-11
Stationary cutter		2
Rotary cutter		18
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1580
	W/mm	1100
	H/mm	1720
Weight	KG	1350

Model		SV - JY800
Voltage		380V 50Hz 3Phase
Crushing chamber		815×470mm
Crushing ability		450-600kg/h
Motor Power		30HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		24
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1750
	W/mm	1540
	H/mm	2380
Weight	KG	2500

Model		SV - JY1000
Voltage		380V 50Hz 3Phase
Crushing chamber		1015×470 mm
Crushing ability		600-700 kg/h
Motor Power		50HP
Blade Material		SKD-11
Stationary cutter		4
Rotary cutter		33
Electric appliances	Brand	Chint
Motor	Brand	Wuxi ZhuoLi （All copper wire）
Speed	r/min	480
Screen mesh	mm	10
Size	L/mm	1800
	W/mm	1800
	H/mm	2900
Weight	KG	3500

MEDIUM SPEED PLASTIC CRUSHER

• Plastic material edges, scrap, water vents, semi-finished products and other materials produced during injection molding

Medium Speed Crusher Features :
1)Small size, small footprint
2) SKD-11 high quality special design blade
3) Low powder and low noise
4)Automatic loading material to storage tank to save manpower.
5) Less powder during the production.
6) High-grade safety operating.
7) No tools required for maintenance & cleaning up.
Product Application:
Small industrial plastic shredder is designed to regrind all kinds of recycled plastic materials come from the injection machine with low speed. No screen mesh needed.
Combination of stability, low-noise, low-dust. It grinds material with equal sizes. It won't get over-heat and will expand the life-span

Model	PJB3000-10	PJB3000-15
Crushing Chamber(MM)	234×285	234×420
Crushing Capacity(Kg/H)	70-150	100-200
Rotary Blade	10	15
Stationary Blade	4	4
Power(KW)	3.7	3.7
Dimensions(MM)	800×500×1000	900×500×1200
Weight(Kg)	150	200

Slow Speed On-line Plastic Granulator

- Low speed at 23RPM,On-the-spot grinding and recycling,space saved.
- Full Open structure, easy to clean and maintan.
- Special desiged on rotery cutting blade,which makes even grinding no powder left,no screen filter required.
- Power Saving, it could be set to working 3minutes then stop, and then start up.

Direction for Use:
This single-shaft Plastic shredder crusher machine manufacturer is good for crushing all kind of plastic around the injection molding machine.
Description of application effect:
This single-shaft Plastic shredder crusher machine manufacturer is can save manpower.

Model	PCJ250	PCJ310	PCJ420
Crushing Chamber(MM)	315×248	315×315	410×315
Crushing Capacity(Kg/H)	15-20	20-25	25-30
Rotary Blade	2	2	3
Stationary Blade	6	6	8
Power(KW)	1.1	1.5	2.2
Dimensions(MM)	900×450×1200	1100×500×1480	1200×500×1560
Weight(Kg)	205	275	315

Plastic Crusher / Grinder / Granulator

Plastic Crusher_PD Flate Blade Series

Plastic Crusher_PP Slice Blade Series

Plastic Cusher_PZ Claw Blade Series

Plastic Cusher_PV "V" Blade Series

Plastic Cusher_Sound Proof JY Series

MEDIUM SPEED PLASTIC CRUSHER

Slow Speed On-line Plastic Granulator
